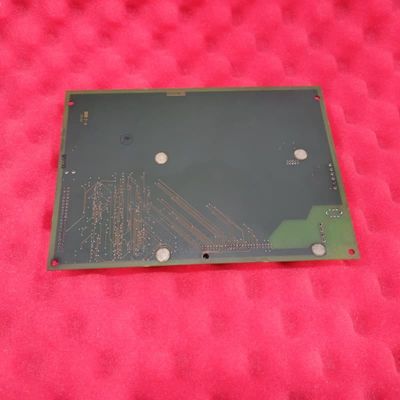

GE DS200ADG1H1AAA Auxiliary Interface Board 100mm x 200mm

The GE DS200ADG1H1AAA is a printed circuit board (PCB) designed for GE's Mark V Turbine Control System, specifically used in managing steam and gas turbine automated drive assemblies. As an Auxiliary Interface Board, it facilitates integration between the Mark V system and auxiliary components, supporting the control logic of turbine operations.

Physically, it measures 8 inches wide and 6 inches long, featuring a 40-pin connector, a 6-pin connector, 60 jumpers, and multiple test points. It installs in the drive's board cabinet via four screws aligning with the board rack. Testing requires qualified servicers with calibrated equipment, proper probe usage, and anti-static measures to prevent damage from static discharge—critical given its sensitivity to electrostatic interference.

• Mark V Integration: Tailored for the Mark V Turbine Control System, enabling seamless communication between the main control unit and auxiliary turbine components, ensuring coordinated operation.
• Connectivity Options: Equipped with 40-pin and 6-pin connectors, plus 60 jumpers, supporting diverse signal connections and configuration flexibility for auxiliary systems.
• Test Accessibility: Multiple test points allow circuit diagnostics, though restricted to qualified personnel with proper tools to maintain accuracy and safety.
• Compact Installation: Dimensions (8"×6") and screw-mount design fit precisely in Mark V cabinet racks, ensuring secure integration into turbine control setups.
