GE IS200TBTCH1CBB Thermocouple Input Terminal Board for Turbine Control

বিনামূল্যে নমুনা এবং কুপন জন্য আমার সাথে যোগাযোগ করুন.
হোয়াটসঅ্যাপ:0086 18588475571
Wechat: 0086 18588475571
স্কাইপ: sales10@aixton.com
যদি আপনার কোন উদ্বেগ থাকে, আমরা 24-ঘন্টা অনলাইন সহায়তা প্রদান করি।
xName | GE IS200TBTCH1CBB Thermocouple Input Terminal Board | Product ID | IS200TBTCH1CBB |
---|---|---|---|
Series | Turbine Specific Primary Trip Board | Function | Thermocouple Input Terminal Board |
Product Net Depth/Length | 330mm | Product Net Height | 200mm |
Product Net Width | 100mm | Product Net Weight | 2kg |
Warranty | 1year | ||
বিশেষভাবে তুলে ধরা | GE turbine thermocouple input board,Turbine control terminal board,IS200TBTCH1CBB Thermocouple Input Terminal Board |
Attribute | Value |
---|---|
Name | GE IS200TBTCH1CBB Thermocouple Input Terminal Board |
Product ID | IS200TBTCH1CBB |
Series | Turbine Specific Primary Trip Board |
Function | Thermocouple Input Terminal Board |
Dimensions (LxHxW) | 330mm x 200mm x 100mm |
Weight | 2kg |
Warranty | 1 year |

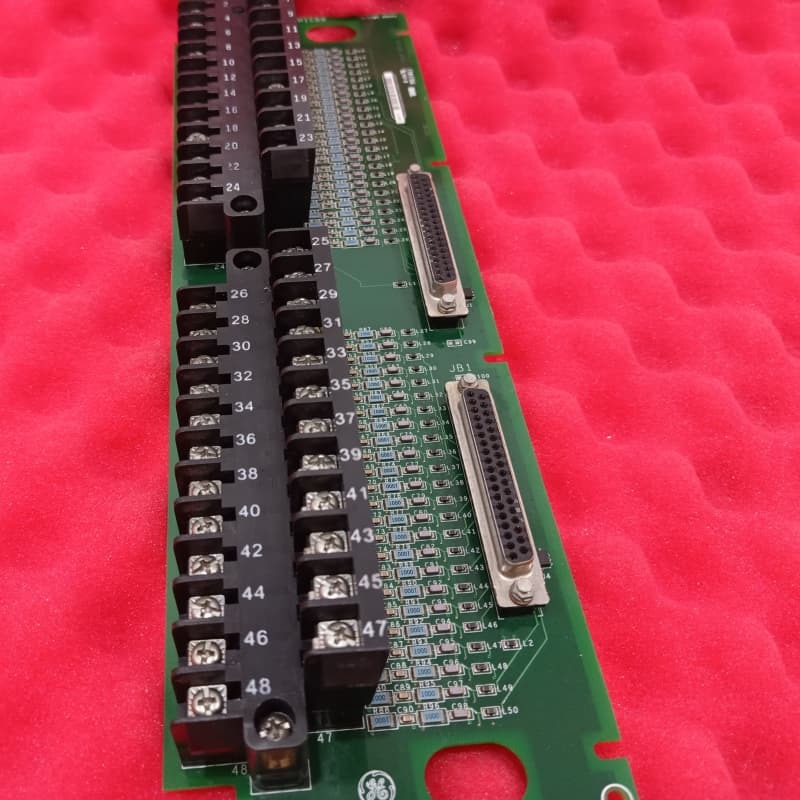

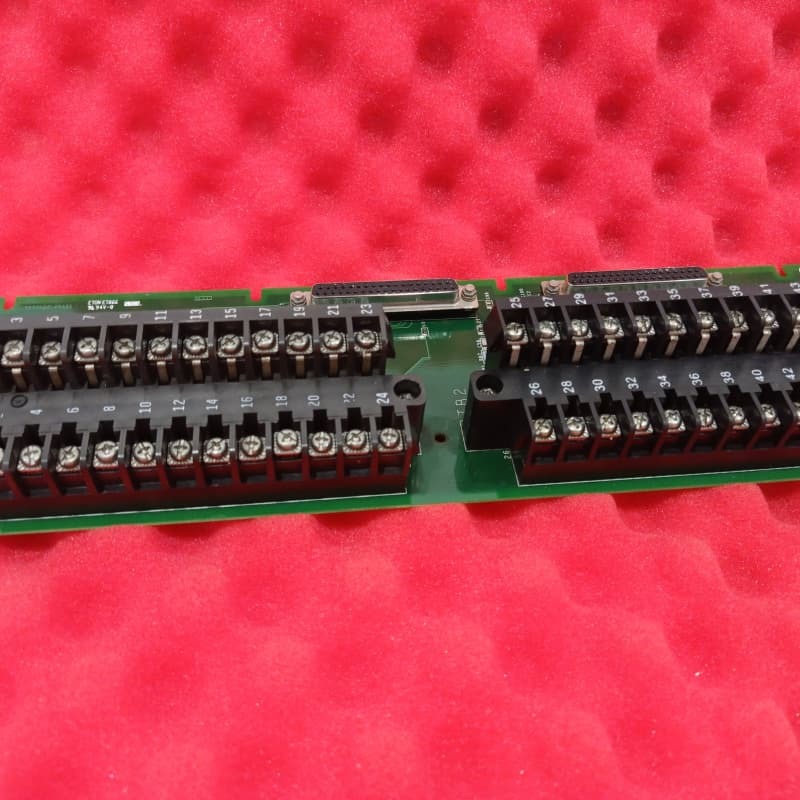

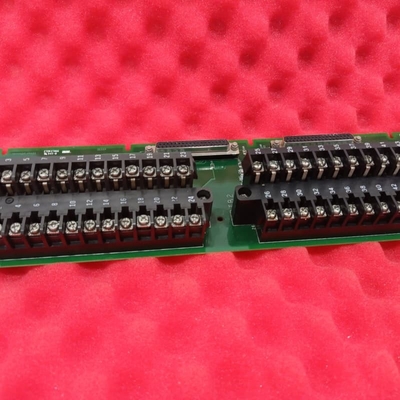

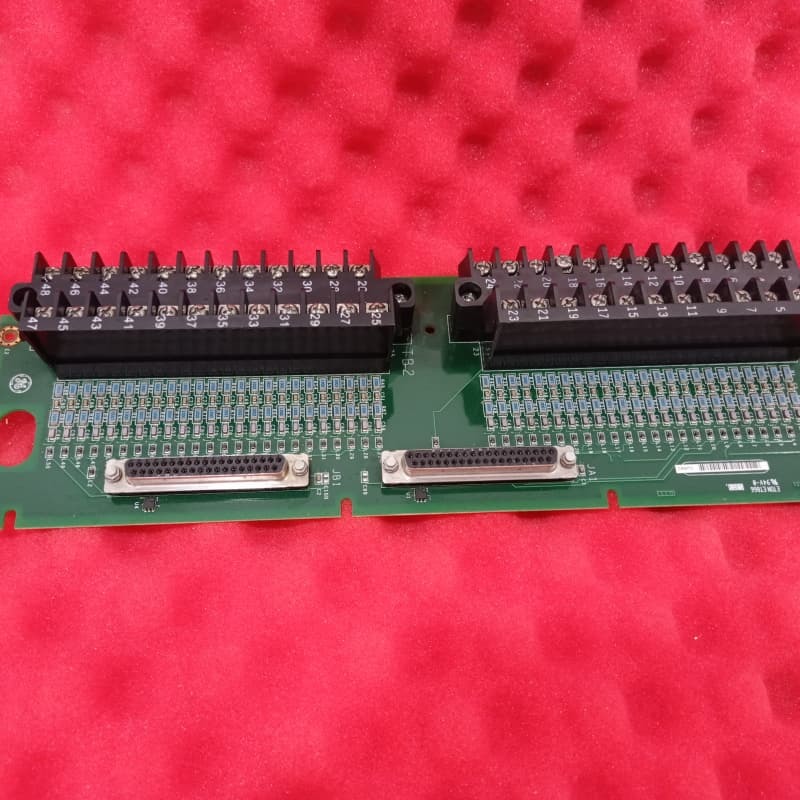

The GE IS200TBTCH1CBB is a Thermocouple Input Terminal Board in the Mark VI Series, integral to GE's Distributed Turbine Control Systems. It accepts 24 thermocouple inputs via two barrier-type terminal blocks, supporting both grounded and ungrounded thermocouples up to 300 meters from the control panel.
Communication with I/O processors uses DC-type connectors, with configurations for simplex (TBTCH1C, 2 DC connectors) or TMR (TBTCH1B, 6 DC connectors) setups. Equipped with high-frequency noise suppression and two cold junction reference devices, it ensures signal integrity. Analog-to-digital conversion and linearization occur in the I/O processor, with PTCC I/O packs handling processing in Mark VIe systems.
- 24 Input Channels: Supports 24 thermocouple inputs (E, J, K, S, T) with a -8.0 mV to +45.0 mV range, suitable for diverse temperature measurements.
- Dual Configurations: Compatible with simplex or TMR systems, with TMR distributing signals to three processors for redundancy.
- Noise & Signal Protection: Integrates high-frequency noise suppression and cold junction references (-30°C to 65°C) to maintain accuracy; shield terminal strips reduce electrical interference.
- Flexible Installation: Terminal blocks accept up to #12 AWG wires, with J-type connectors for I/O pack integration, scalable for redundancy needs.
- Fault Tolerance: Cold junction faults trigger backups, ensuring reliability in critical industrial environments.
